Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to AC Volts Set meter to measure AC Volts
Gain access to PCB (use Insulation Mat as required)
WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure
Mains Power On

Measurement:

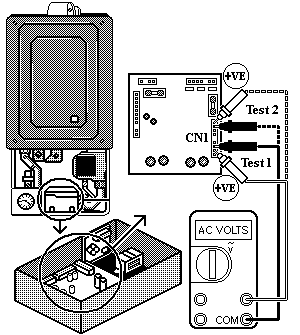

Test 1.
Measure approx 24V AC across connector CN1 connections
6 (White) and 7 (Red).
Test 2.
Measure approx 6V AC across connector CN1 connections
1 (Purple) and 2 (Orange).
