RESISTANCE IGNITION LEAD
Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance

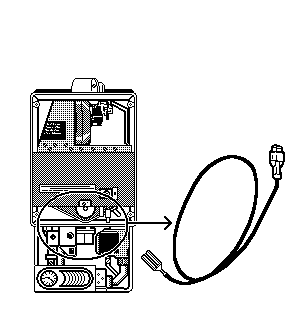

Remove the ignition lead from the spark electrode and piezo igniter
Measurement:
Measure the resistance of the lead and check its condition visually.
OPEN CIRCUIT MEASURED OR LEAD IN POOR CONDITION
CONTINUITY MEASURED AND LEAD IN GOOD CONDITION
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
