Set Appliance State:
Mains Power Off
Gas On; Pilot On
CH Demand
Selector Switch ON
Gas Control Knob in Main Burner position
Gas Control Knob in Main Burner position
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

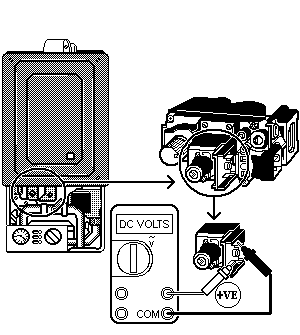

Measure voltage across Modulation Coil (Grey wires).
Voltage should be approximately 6-13 Volts DC.
Voltage should be approximately 6-13 Volts DC.

Isolate as per TOPs P4
and refit as necessary
