Set Appliance State:
Mains Power Off
Gas On; Pilot On
CH Demand
Selector Switch ON
Gas Control Knob in Main Burner position
Gas Control Knob in Main Burner position
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

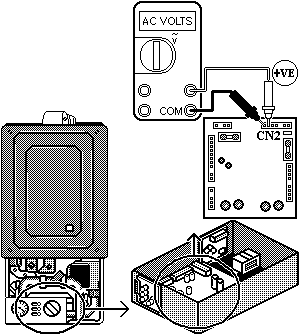

Measure voltage across connector CN2 connection 1 (blue wire) and connection 2 (L, brown wire) on the PCB.

Isolate as per TOPs P4
and refit as necessary
