Set Appliance State:
Mains Power Off
Gas On; Pilot On
CH Demand
Selector Switch ON
Gas Control Knob in Main Burner position
Gas Control Knob in Main Burner position
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

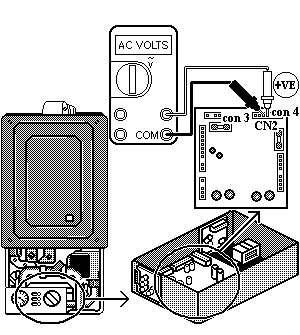

Measure the high fan voltage across connection 4 (L, Red) and connection 3 (N, Violet) on connector CN2.
This should be approximately 240 Volts AC.
This should be approximately 240 Volts AC.

Isolate as per TOPs P4
and refit as necessary
