MAINS SUPPLY
Set Appliance State:
Mains Power Off
Gas Off
Set Multimeter to AC Volts
Selector Switch OFF
WARNING!
Mains voltage is expected during test, follow TOPs P4 live testing procedure
Mains Power On
Measurement:

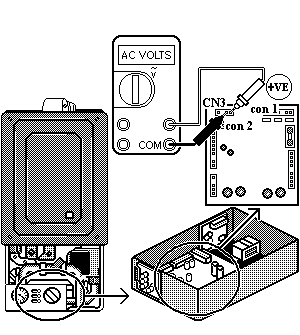

Measure voltage across connections L (Brown) and N (Blue) on connector CN3.
MAINS VOLTAGE PRESENT
MAINS VOLTAGE ABSENT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
