Set Appliance State:
Mains Power Off
Gas On; Pilot On
Selector Switch OFF
Gas Control Knob in Main Burner position
Gas Control Knob in Main Burner position
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:

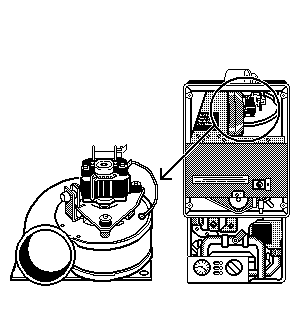

Allow fan to run high speed then reduce to slow speed.
(This should take approximately 30 seconds)
Selector Switch ON.
Create CH Demand.
Does the Fan speed increase?
(This should take approximately 30 seconds)
Selector Switch ON.
Create CH Demand.
Does the Fan speed increase?
