FUSE FS1
Set Appliance State:
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Measurement:

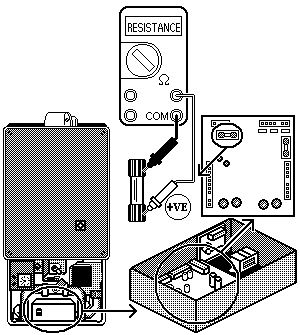

Remove Fuse FS1 from the Main Control Board and check the resistance is a short circuit.
SHORT CIRCUIT
OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
