G.C. Number 47 313 04

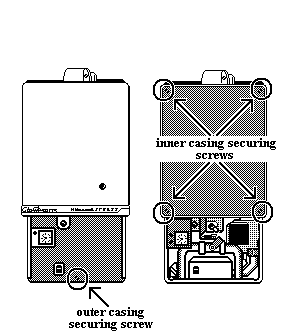

Outer case removal
To open, pull the door down by it hinges and remove the selector Control Knob from the spindle.
To remove the outer case, unscrew the securing screw, unhook the case at the top and remove it from the boiler.
Inner case removal
To remove the cover of the inner case unscrew the four securing screws.
Outer case removal
To open, pull the door down by it hinges and remove the selector Control Knob from the spindle.
To remove the outer case, unscrew the securing screw, unhook the case at the top and remove it from the boiler.
Inner case removal
To remove the cover of the inner case unscrew the four securing screws.
Isolate as per TOPs P4
and refit as necessary
