Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to DC Volts
NO demand
Preheat switched OFF (ECO button illuminated)

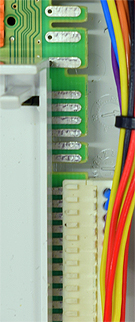

Remove connector ST17 from PCB
Preheat switched OFF (ECO button illuminated)
Remove connector ST17 from PCB
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:

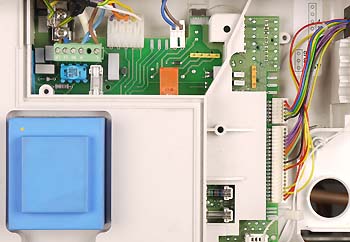

Measure the voltage across pin 1 at location
ST17 on the PCB and mains neutral.
Press and hold the reset button on the control panel for 2 seconds and then release.
The voltage should fluctuate up and down by approx 6V DC for 4 seconds
before settling back to its original voltage.
Reset the appliance again and repeat the test on pins 3, 4 and 6, the
voltage should behave as above on all tests.
Note:
Some volt meters may display the voltage fluctuations clearer if set to manual range.
ST17 on the PCB and mains neutral.
Press and hold the reset button on the control panel for 2 seconds and then release.
The voltage should fluctuate up and down by approx 6V DC for 4 seconds
before settling back to its original voltage.
Reset the appliance again and repeat the test on pins 3, 4 and 6, the
voltage should behave as above on all tests.
Note:
Some volt meters may display the voltage fluctuations clearer if set to manual range.
Isolate as per TOPs P4
and refit as necessary
