Set Appliance State:
Gas Off
| Isolate Mains Power to appliance as per TOPs P4 |
Turn Hot Water Tap ON
DHW Temperature Control to MAX
DHW Temperature Control to MAX

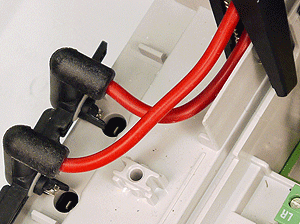

Remove spark leads from control box

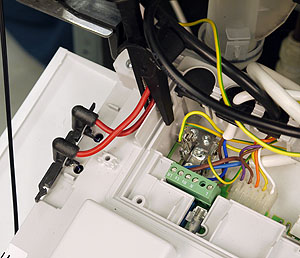

With the aid of a crocodile clip hold the spark leads in place
close to the control box as shown
With the aid of a crocodile clip hold the spark leads in place
close to the control box as shown
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Reset appliance if necessary, press and hold reset button
for 5 seconds, then release.
Allow boiler to commence its ignition sequence.
.... CAUTION. Stand away from boiler.
Does sparking occur for approximately 4 seconds?
Note:
Lockout may occur after 5 attempts to ignite. If lockout occurs,
reset boiler as required to complete test.
for 5 seconds, then release.
Allow boiler to commence its ignition sequence.
.... CAUTION. Stand away from boiler.
Does sparking occur for approximately 4 seconds?
Note:
Lockout may occur after 5 attempts to ignite. If lockout occurs,
reset boiler as required to complete test.
Isolate as per TOPs P4
and refit as necessary
