Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |

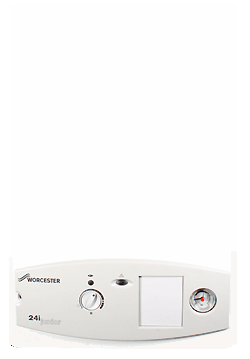

Case removal
Cabinet Front Panel - To remove lift off supports.
Inner Casing Cover - Check that the electricity supply to the appliance is turned off. To remove unscrew the two screws (A) securing the cover to the casing and lift off.
Facia Panel - To remove unscrew the screw (B) and hinge up the facia. The facia can be dropped on to a lower set of lugs for easier access.
Facia Panel Access - Undo two screws (C) to remove.
Cabinet Front Panel - To remove lift off supports.
Inner Casing Cover - Check that the electricity supply to the appliance is turned off. To remove unscrew the two screws (A) securing the cover to the casing and lift off.
Facia Panel - To remove unscrew the screw (B) and hinge up the facia. The facia can be dropped on to a lower set of lugs for easier access.
Facia Panel Access - Undo two screws (C) to remove.
Isolate as per TOPs P4
and refit as necessary
