Set Appliance State:
On/Off Switch OFF
Isolate Mains Power to appliance as per TOPs P4

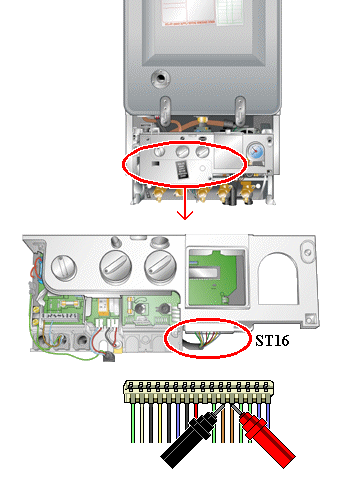

Remove plug connector ST16 from the PCB
Remove plug connector ST16 from the PCB
Measurement:
Measure the resistance across contacts 5 and 6 (brown wires) on the disconnected connector ST16. Resistance should be between 100-200 ohms.
Reconnect plug connector ST16 after test.
Reconnect plug connector ST16 after test.

Isolate as per TOPs P4
and refit as necessary
