XSol Diagnostic System

FUSE F2 (1.6 AMP) (FAULT CODE)

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Remove fuse F2 from PCB

Measurement:

Check resistance of the fuse.

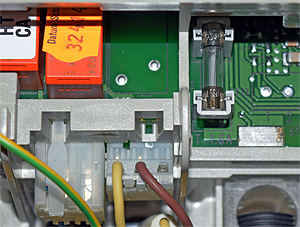

wc c1 e27623 pcb fus f2.jpg
