XSol Diagnostic System

FUSE F1 (2 AMP)

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Remove fuse F1 from PCB

Measurement:

Check resistance of the fuse.

wc c1 pcb connections showing.gif

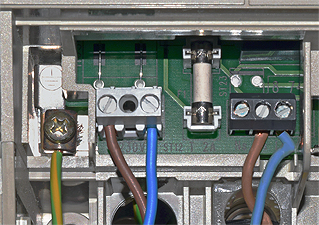

wc c1 e27623 pcb mains and ext controls.jpg


@pcb main fuse.gif
