Set Appliance State:
Mains Power Off
Programmer or selector switch set to hot water only
Heating temperature selector to OFF
Hot water temperature selector to maximum
Ensure heat bank is not up to temperature (this can be achieved by running the DHW with the mains power to the appliance on and the gas to the appliance switched off)
Heating temperature selector to OFF
Hot water temperature selector to maximum
Ensure heat bank is not up to temperature (this can be achieved by running the DHW with the mains power to the appliance on and the gas to the appliance switched off)
Gas On
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:

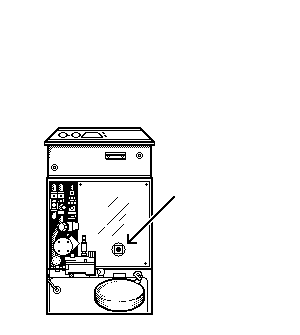

Allow fan to run and pilot to ignite
Does the main burner cross light from the pilot?
Does the main burner cross light from the pilot?
