Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance Set meter to measure resistance

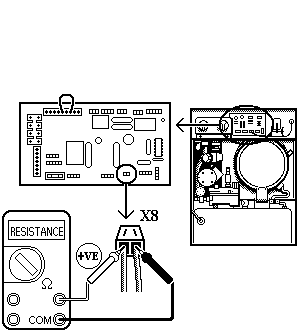

Remove connector X8 (orange wires) from PCB

Measurement:

Measure resistance between the two orange leads on the connector.
Replace connector after test.
