Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

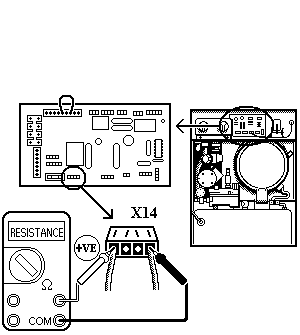

Set Multimeter to Resistance Set meter to measure resistance
Disconnect connector X14 (red leads) from PCB

Measurement:

Measure resistance across the two red leads of the disconnected connector.
Resistance should be short circuit.
Reconnect connector after test
