Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Remove connector X14 (red wires) from PCB
Check temperature of heatbank (it should not be in an overheat state i.e. below 93 degrees C)
Check temperature of heatbank (it should not be in an overheat state i.e. below 93 degrees C)
Measurement:

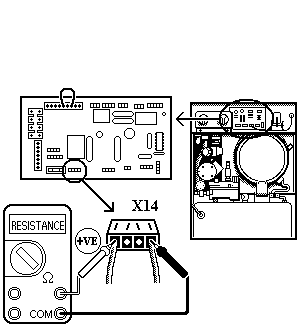

Measure resistance across the two red leads at the disconnected connector.
Reconnect connector after test.
Reconnect connector after test.

Isolate as per TOPs P4
and refit as necessary
