FUSE (3 AMP)
Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance

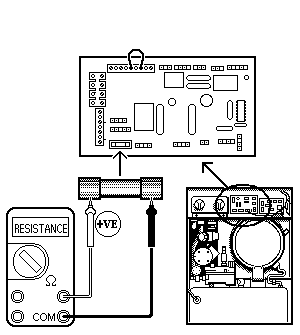

Remove fuse from its holder on the main PCB
Measurement:
Check resistance of fuse.
Refit fuse after test.
RESISTANCE SHORT CIRCUIT
RESISTANCE OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
