SYSTEM PRESSURE OK?
Set Appliance State:
Mains Power Off
Observation:

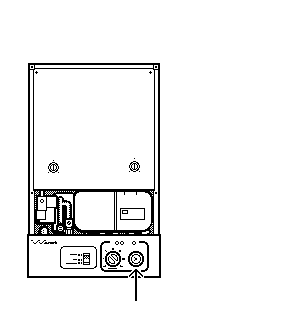

Look at the pressure gauge is the system pressure between 1bar and 1.5bar when cold?
Pressure Gauge
PRESSURE ABOVE 1 BAR
PRESSURE BELOW 1 BAR
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
