FUSE F2
Set Appliance State:
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Measurement:

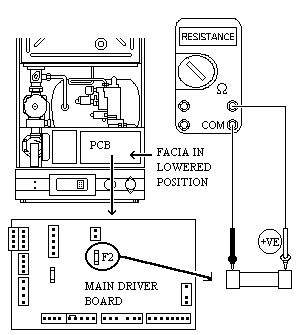

Measure the resistance of Fuse F2
FUSE IS SHORT CIRCUIT.
FUSE IS OPEN CIRCUIT.
