HW SENSOR

Set Multimeter to Resistance

Isolate Mains Power to appliance as per TOPs P4

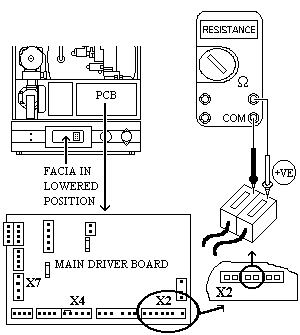

Remove the middle plug (Red wires) from connector X2 on Main Driver board

Measure the resistance across the red wires on the end of the plug.

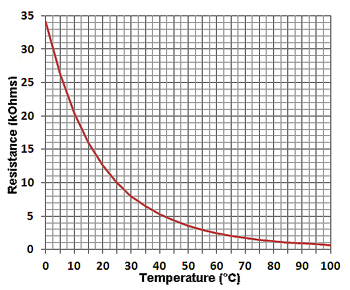

Resistances vary with temperature and should conform approximately to the table below:

Note: Clicking on the resistance table will switch between table and graph view..
