Set Appliance State:
CH Demand
Isolate Mains Power to appliance as per TOPs P4
Remove one lead from the modulating coil

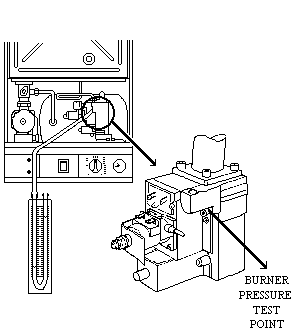

Attach U Gauge to burner pressure test point
Remove one lead from the modulating coil
Attach U Gauge to burner pressure test point
Gas On
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Measure the low rate burner pressure this should be approximately 2.5mb
Note:
When pressure gauge is removed the pressure test point should be tightened and checked for gas tightness.
Note:
When pressure gauge is removed the pressure test point should be tightened and checked for gas tightness.
Isolate as per TOPs P4
and refit as necessary
