G.C. Number 47 311 06
Case removal

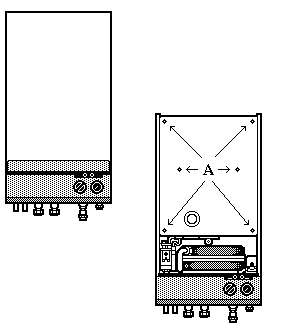

Remove the cabinet front cover by lifting upwards and pulling forward.
Remove the screw at the front inside edge of each cabinet side panel. Allow the panel to pivot downwards.
Remove the six screws (A) holding the inner cover onto the boiler back plate. Remove the inner cover.
