Set Appliance State:
Gas Off
Set Multimeter to AC Voltage
CH Demand
Isolate Mains Power to appliance as per TOPs P4
Boiler Operating Switch in HW and CH position
Heating Control Thermostat (Potentiometer) adjusted to Maximum
Gain access to terminal strip (use insulation mat as necessary)
Boiler Operating Switch in HW and CH position
Heating Control Thermostat (Potentiometer) adjusted to Maximum
Gain access to terminal strip (use insulation mat as necessary)
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

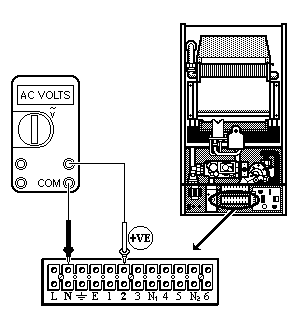

Measure the voltage across connection 2 (Grey wire) and connection N (Blue wire) on the lower connector block.
Isolate as per TOPs P4
and refit as necessary
