Set Appliance State:
Mains Power Off
Gas Off
CH Demand
Boiler Operating Switch in HW and CH position
Heating Control Thermostat (Potentiometer) adjusted to Maximum
Heating Control Thermostat (Potentiometer) adjusted to Maximum
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:

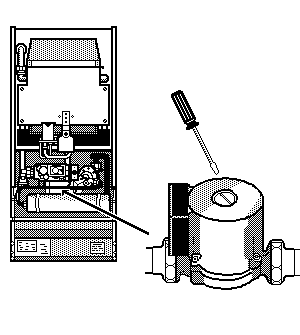

The pump is situated behind the gas valve and secondary heat exchanger.
Does the pump run?
Note:
Do not take noise or vibration as a sign of pump operation.
Does the pump run?
Note:
Do not take noise or vibration as a sign of pump operation.
