Set Appliance State:
Gas On; Pilot On
Isolate Mains Power to appliance as per TOPs P4
Ignite and establish Pilot
Ignite and establish Pilot
Observation:

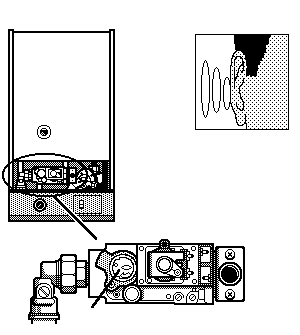

Extinguish the pilot by turning the gas control knob approximately 30 degrees clockwise.
After the initial sound of the gas valve closing, within approximately 30 seconds a click should be heard from the gas valve signifying the flame failure device within the gas valve has operated.
After the initial sound of the gas valve closing, within approximately 30 seconds a click should be heard from the gas valve signifying the flame failure device within the gas valve has operated.
