Set Appliance State:
Gas On; Pilot On
Turn Hot Water Tap On
Isolate Mains Power to appliance as per TOPs P4
Boiler Operating Switch in HW position

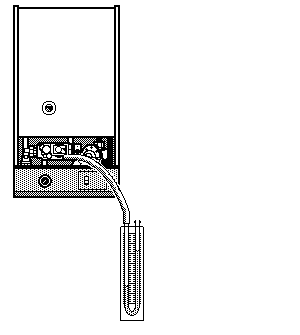

Connect a U-gauge to the Gas Valve outlet pressure test point
Boiler Operating Switch in HW position
Connect a U-gauge to the Gas Valve outlet pressure test point
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:
With the DHW tap fully open does the burner ignite and operate at its maximum gas pressure of approximately 16mb?
Note:
When U-gauge is removed pressure test point should be tightened & checked for gas soundness.
Note:
When U-gauge is removed pressure test point should be tightened & checked for gas soundness.
Isolate as per TOPs P4
and refit as necessary
