INSPECTION SENSORS WIRED AND FITTED CORRECTLY
Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Observation:

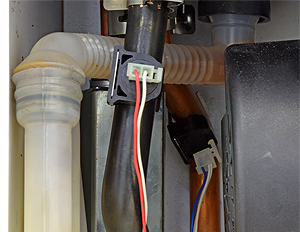

Check flow and return sensors are wired correctly and fitted securely to the flow and return pipes.
FLOW AND RETURN SENSORS WIRED AND FITTED CORRECTLY
FLOW OR RETURN SENSOR INCORRECTLY WIRED OR FITTED
