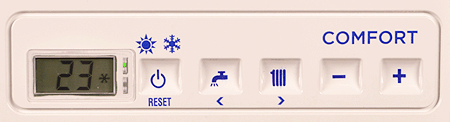

To access the parameters press the tap and
radiator keys simultaneously and hold for 5 seconds.
The red LED flashes and the display shows:
PARAMETER 14 - MAXIMUM HEATING TEMPERATURE
To access the parameters press the tap and
radiator keys simultaneously and hold for 5 seconds.
The red LED flashes and the display shows:
Scroll through using the tap or radiator key until the display shows 14 (this is parameter 14)
To enter the parameter press the + or - key. The value set flashes and the display will show a value between 20 - 80°C
To exit the parameters press the Reset key.
Note:
Whatever value is flashing on the display is the maximum temperature the boiler is set at.
The default setting is 80.
Whatever value is flashing on the display is the maximum temperature the boiler is set at.
The default setting is 80.
Adjustment of parameter values;
To change the set value press the + or - keys.
To confirm the set value press the tap or radiator key.
To change the set value press the + or - keys.
To confirm the set value press the tap or radiator key.
