RESISTANCE EXHAUST TEMPERATURE SENSOR

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

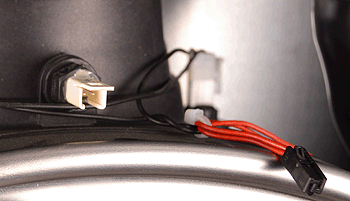

Remove the connector from the exhaust temperature sensor

Measure the resistance between the exposed
pins on the exhaust temperature sensor.

Resistances vary with temperature and should conform approximately to the table below:

Note:
Clicking on the resistance table will switch between table and graph view
