Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |

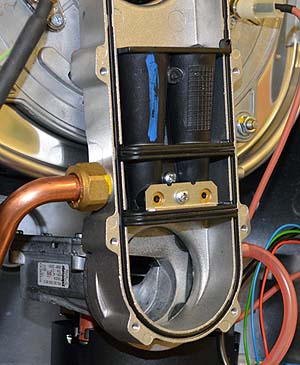

Remove the front panel from the air/gas mixer assembly
Observation:
1. Confirm the compensation pipe orifice is not restricted and/or blocked.
2. Remove the mixer and the differential nozzles from the chamber.
Visually inspect the mixer and the differential nozzles for restrictions/blockages and general good condition.
Note.
Refer to adapt regarding any gasket replacement requirements.
2. Remove the mixer and the differential nozzles from the chamber.
Visually inspect the mixer and the differential nozzles for restrictions/blockages and general good condition.
Note.
Refer to adapt regarding any gasket replacement requirements.
Isolate as per TOPs P4
and refit as necessary
