DHW OPERATION

Set Appliance State:

Turn Hot Water Tap On

WARNING! - Mains voltage is expected during test follow
TOPs P4 live testing procedure

Mains Power On

Observation:

Allow the burner to ignite and run on DHW.

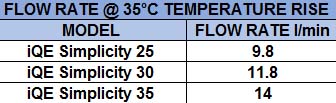

With a flow rate at the tap as per table below, is there a temperature rise of approximately 35° C and is the performance satisfactory? (see note)

Note:
1. Flow rates higher or lower than that stated above will affect the temperature rise, this must be taken into account when selecting an outcome of the test.
2. To investigate a poor flow rate click HERE.
3. If a fault code occurs during DHW operation, you must click HERE to avoid misdiagnosis.
