Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance Set meter to measure resistance
Remove connectors CN13 & CN15 from the PCB

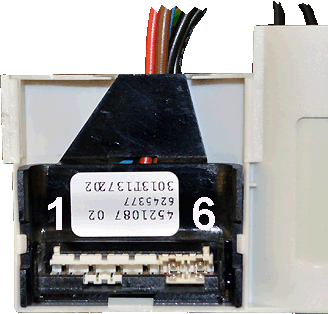

Disconnect electrical connector to pump assembly

Measurement:

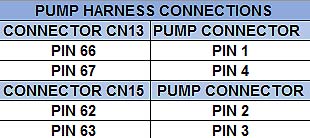

Measure the continuity of the pump harness, connections are (see table).
Expect continuity/zero resistance on each test.
