Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |

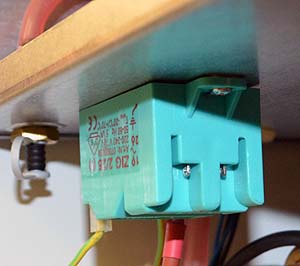

Remove electrical connector from spark generator
Measurement:
Test 1.
Measure for resistance across the exposed terminals of the spark generator.
Expected resistance greater than 1 MOhm (O.L is greater than 1MOhm).
Test 2 - Resistance to Earth:
Measure the resistance across one exposed terminal of the spark generator & a suitable earth connection.
Expected resistance greater than 1 MOhm (O.L is greater than 1MOhm).
Measure for resistance across the exposed terminals of the spark generator.
Expected resistance greater than 1 MOhm (O.L is greater than 1MOhm).
Test 2 - Resistance to Earth:
Measure the resistance across one exposed terminal of the spark generator & a suitable earth connection.
Expected resistance greater than 1 MOhm (O.L is greater than 1MOhm).

Isolate as per TOPs P4
and refit as necessary
