Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
INFORMATION CASE REMOVAL
Remove the screw on the underside of the facia, lift up the front panel & remove.

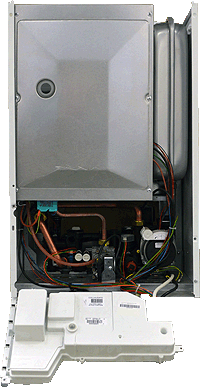

Remove screw from PCB housing & lower housing.

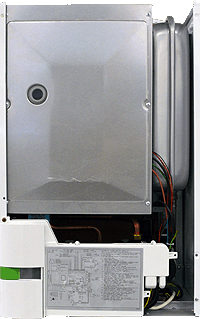

Access combustion chamber, remove 6 x screws & remove cover.
Access to PCB is achieved by removing screws from housing & exposing PCB.
