RESISTANCE RETURN SENSOR

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

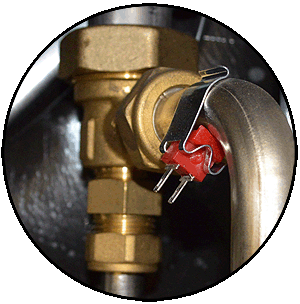

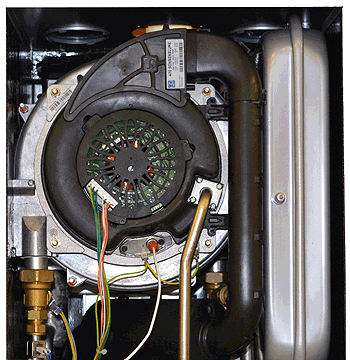

Remove the leads from the return sensor (green leads)

Measure the resistance between the
exposed terminals on the return sensor.

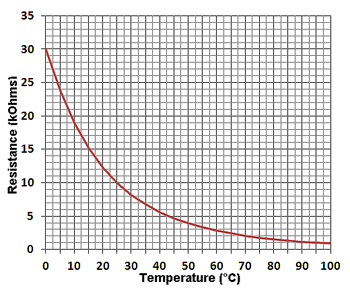

Resistances vary with temperature and should conform approximately to the table below:

Note.
Clicking on the resistance table will switch between table and graph view.
