Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
FERROLI MODENA / T-ONE
Step 2.

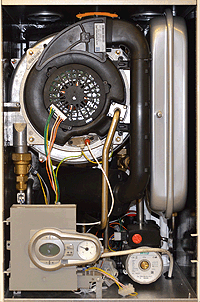

Remove the screw securing the front control panel and remove the electrical terminal box, then swing the panel around.
Remove the screw securing the front control panel and remove the electrical terminal box, then swing the panel around.
Step 3.
To gain access to the lower section of the PCB remove the securing screw and undo the 3 clips at the bottom of the control panel then lower, for access to the upper half, disconnect the ignition lead and undo the 2 clips, then raise.
To gain access to the lower section of the PCB remove the securing screw and undo the 3 clips at the bottom of the control panel then lower, for access to the upper half, disconnect the ignition lead and undo the 2 clips, then raise.
Step 1.

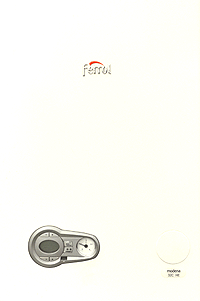

Loosen the 2 screws underneath the appliance at either corner. Pull the case forward at the bottom, then lift up and over the top retaining lug
Loosen the 2 screws underneath the appliance at either corner. Pull the case forward at the bottom, then lift up and over the top retaining lug
