OBSERVATION IGNITION LEAD

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Observation:

Which type of ignition lead is fitted?

fr optimax he 38 c case off, pcb down (bertelli).gif

fr optimax he 38 c igl 731497 complete modified.gif

fr optimax he 38 c igl 731497 complete original.gif

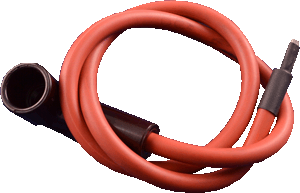

Original Design

Modified Design
