Set Appliance State:
Gas Off
Isolate Mains Power to appliance as per TOPs P4
Observation:

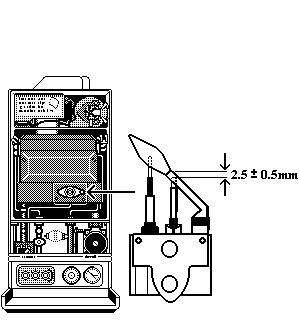

Check electrode gap.
Gap should be 2.5mm +/- 0.5mm, between electrode tip and the pilot burner.
Gap should be 2.5mm +/- 0.5mm, between electrode tip and the pilot burner.
