Set Appliance State:
Mains Power Off
Set Multimeter to DC Volts
Turn Hot Water Tap On
Selector switch in HOT WATER position
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:

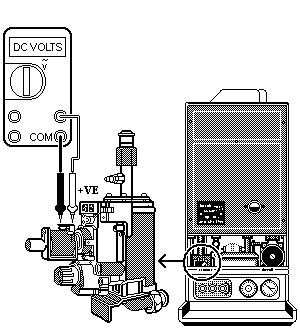

With the DHW tap fully open, measure the DC voltage across the brown and black leads on the modureg solenoid.
The voltage reading should be approximately 24 Volts DC.
Note:
Ensure the multimeter is in DC volts setting. Other meter settings may cause damage to the PCB.
The voltage reading should be approximately 24 Volts DC.
Note:
Ensure the multimeter is in DC volts setting. Other meter settings may cause damage to the PCB.
Isolate as per TOPs P4
and refit as necessary
