Set Appliance State:
Mains Power Off
Gas Off
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:

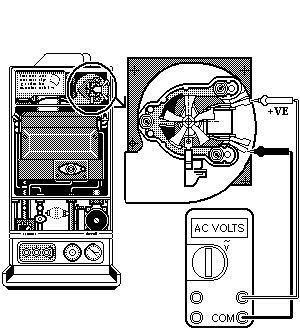

Measure voltage across the brown wire (live) and blue wire (neutral) on the fan.
Voltage is expected to be between 85 and 100 Volts AC.
Voltage is expected to be between 85 and 100 Volts AC.

Isolate as per TOPs P4
and refit as necessary
