Set Appliance State:
Mains Power Off
Gas On; Pilot On
Selector switch in HOT WATER position
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:

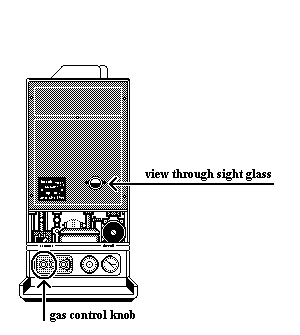

Extinguish pilot by turning gas control knob approximately 1/12 (approximately 30 degrees) clockwise.
This will cause pilot flame to go out and gas valve to snap shut.
After a short period, a click should be heard as the mag valve closes.
This will cause pilot flame to go out and gas valve to snap shut.
After a short period, a click should be heard as the mag valve closes.
