Set Appliance State:
Gas On; Pilot On
Turn Hot Water Tap On
Isolate Mains Power to appliance as per TOPs P4
Selector switch to HOT WATER position

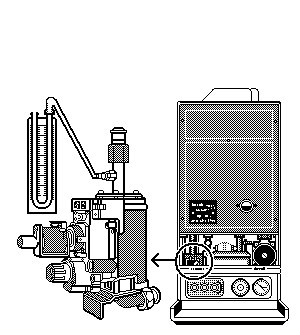

Attach U-gauge to burner pressure test point
Selector switch to HOT WATER position
Attach U-gauge to burner pressure test point
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Observe U-gauge.
Does the burner cross light from pilot and go to maximum burner approximately 15.3 mb?
Note:
When U-gauge is removed, test point should be tightened and checked for gas soundness.
Does the burner cross light from pilot and go to maximum burner approximately 15.3 mb?
Note:
When U-gauge is removed, test point should be tightened and checked for gas soundness.
