GAS VALVE CONTROL KNOB PLASTIC TAB
Isolate Mains Power to appliance as per TOPs P4
Observation:

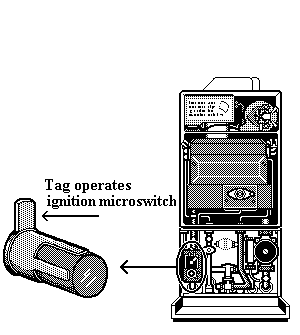

Remove the plastic gas control knob from the gas valve, and examine the plastic tab on the control knob, that acts upon the ignition microswitch, for damage.
GAS CONTROL KNOB TAB IN GOOD CONDITION
GAS CONTROL KNOB TAB BROKEN
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
