Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Gain access to terminal strip
Gain access to terminal strip
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:

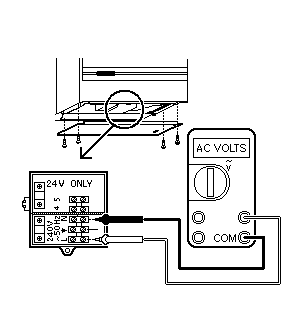

Measure voltage across the live (brown wire, connection marked L) and the neutral (blue wire, connection 3 marked N) on the main terminal block.

Isolate as per TOPs P4
and refit as necessary
