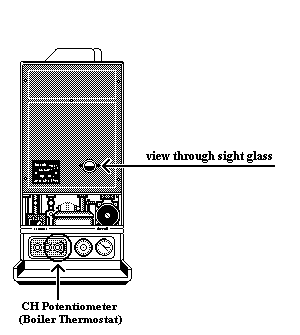

Set Appliance State:
Mains Power Off
Gas On; Pilot On
CH Demand
Selector switch in CH TIMED position
Ensure clock is set to an ON period
Ensure clock is set to an ON period
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Does the burner ignite under timed demand?
Note: If power has been switched off or CH demand has been interrupted, there will be a delay of between 1 and 3 minutes before the boiler starts.
Note: If power has been switched off or CH demand has been interrupted, there will be a delay of between 1 and 3 minutes before the boiler starts.
