Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance Set meter to measure resistance
Selector Switch in CH TIMED position
Ensure that the CH Timer is in its CH On condition

Measurement:

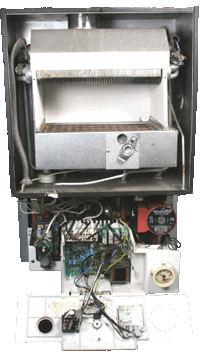

Disconnect the selector switch connector (connector X2) from the PCB.
Measure the resistance across connection 5 (Black wire) and connection 3 (Black wire) on the CH Timer.
Note: Measurement is taken at Timer terminals.
Replace connector after test.
