Set Appliance State:
Set Multimeter to AC Volts
Isolate Mains Power to appliance as per TOPs P4
DHW Demand
DHW Selector in Maximum (+) position
CH Selector in Minimum (-) position
ON/OFF Switch in ON position

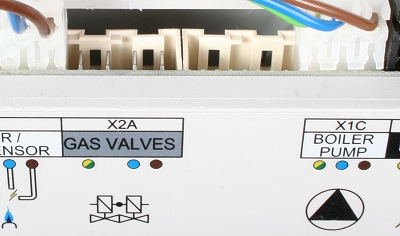

Remove the plug X2A gas valve from the PCB
DHW Demand
DHW Selector in Maximum (+) position
CH Selector in Minimum (-) position
ON/OFF Switch in ON position
Remove the plug X2A gas valve from the PCB
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:
Using shrouded probes measure voltage across
brown and blue labelled terminals on the PCB at
X2A Gas valve on the rear of the lowered control box.
Expect mains voltage.
Note:
Voltage will only be present during the sparking phase
of the ignition sequence.
brown and blue labelled terminals on the PCB at
X2A Gas valve on the rear of the lowered control box.
Expect mains voltage.
Note:
Voltage will only be present during the sparking phase
of the ignition sequence.
Isolate as per TOPs P4
and refit as necessary
